Anchor Handling Tug Supply Vessel
Anchor Handling Tug Supply Vessel
Efficient, Reliable, Safe.
-
Length Overall
59.25 m
-
GRT/NRT
1690 T/507 T
-
Bollard Pull
67.35 T
-
Speed
13 Knots
Our maritime workhorse is designed to elevate your offshore operations to levels of efficiency and versatility. This robust vessel seamlessly integrates the dual capabilities of anchor handling and supply services, offering a comprehensive solution for the demanding needs of the oil and gas industry. Equipped with winch systems, our Tug ensures precise control during anchor handling, while its expansive deck space accommodates a diverse range of supplies, equipment, and personnel. Advanced navigation and dynamic positioning technology guarantee optimal performance, even in challenging sea conditions.
Anchor Handling Tug Supply Vessel
Key Figures
DIMENSIONS
Length Overall
59.25 metres
Beam
14.95 metres
Maximum Draft
4.9 metres | Displacement 2911.079 MT
Net Registered Tonnage
507 T
Gross Registered Tonnage
1690 T
Performances
Speed
13 Knots
Bollard pull
67.35 Tons
Cargo Capacity
Fresh Water
372 m.cube @ 100 m.cube per hr at 75m head
Drill Water
400 m.cube @ 100 m.cube per hr at 75m head
Fuel Capacity (100%)
535 m.cube @ 150 m.cube per hr at 75m head
Liquid Mud
419 m.cube 70 m.cube per hr
Dry Bulk
4 x 1650 cu ft each, total 6,600 cu ft
Dead Weight
1400 Tons
Clear Deck Area
340 m square
Deck Cargo
500 tons
Deck Loading
7.5 T/m sqaure
External Fire Fighting
Capacity
FIFI 1-2400 cu m per hr
Monitor
2 x 1200 cu per hr
Throw x Height
120 m x 45 m

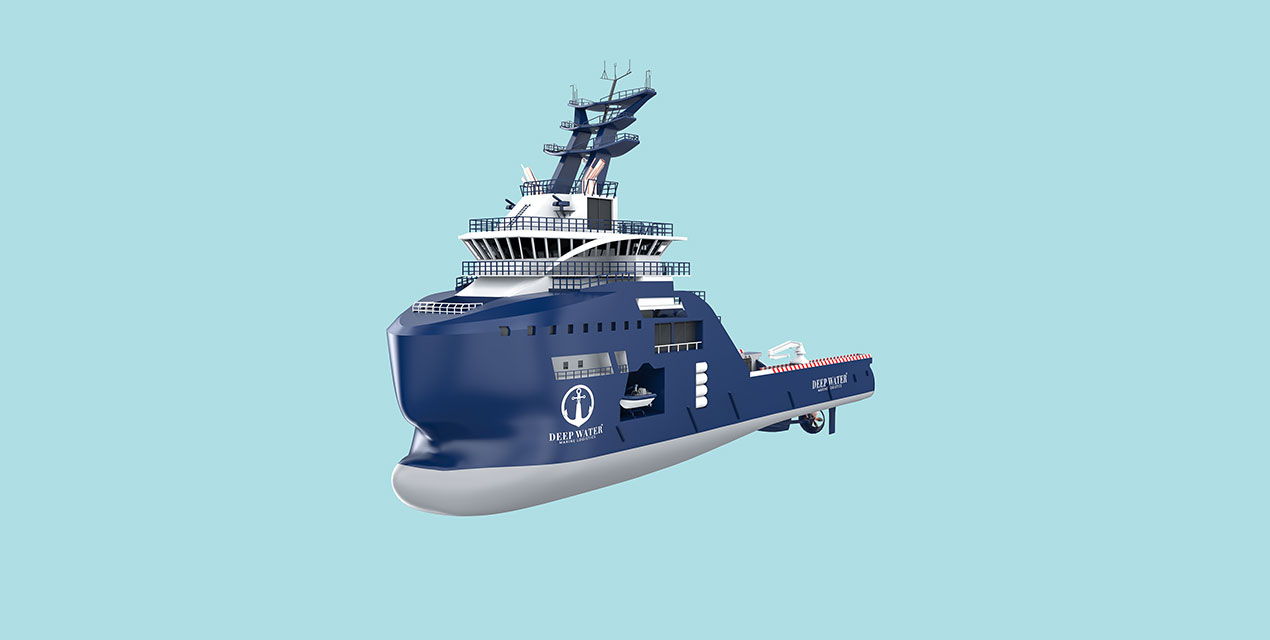

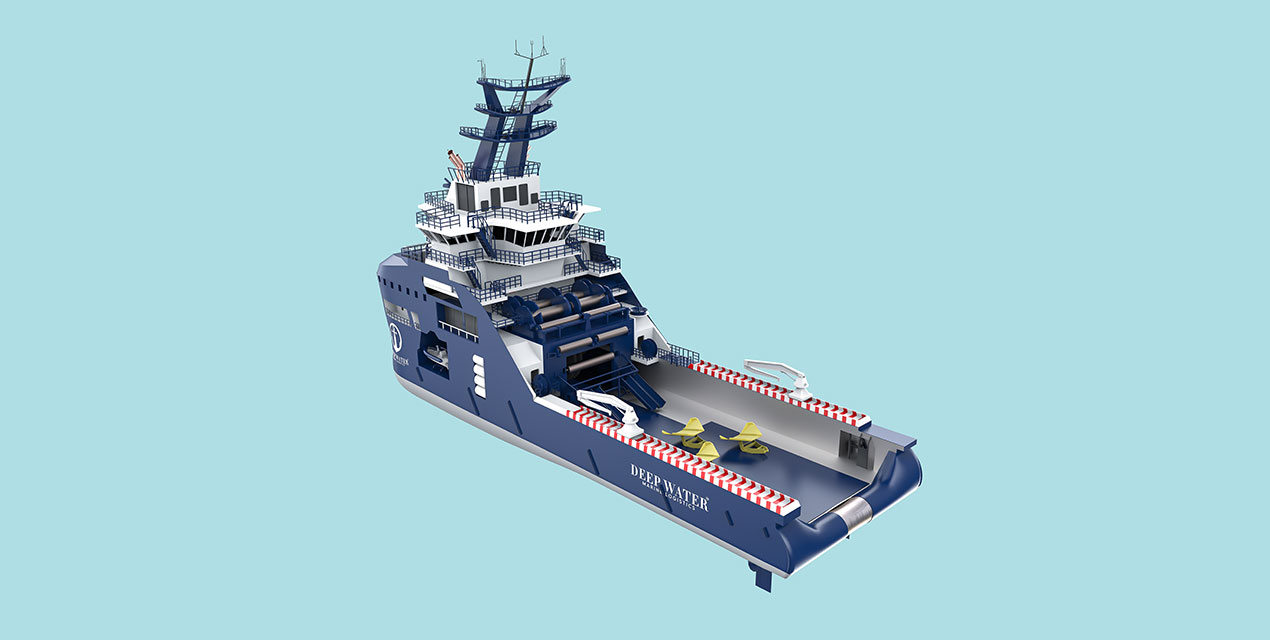

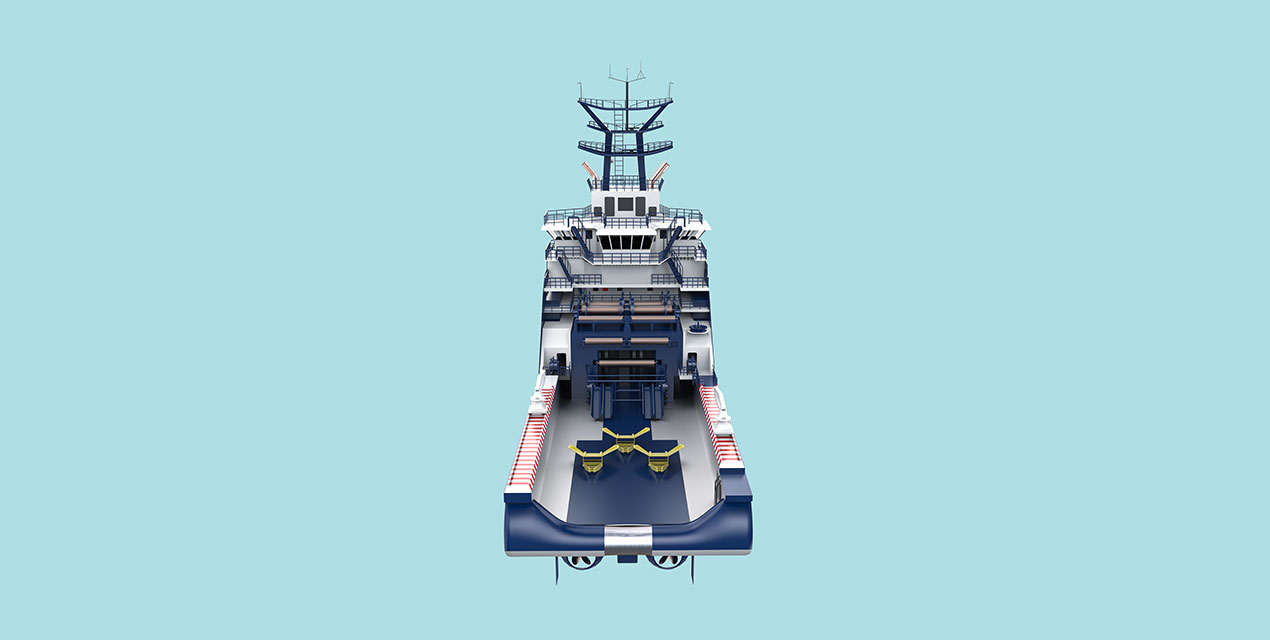

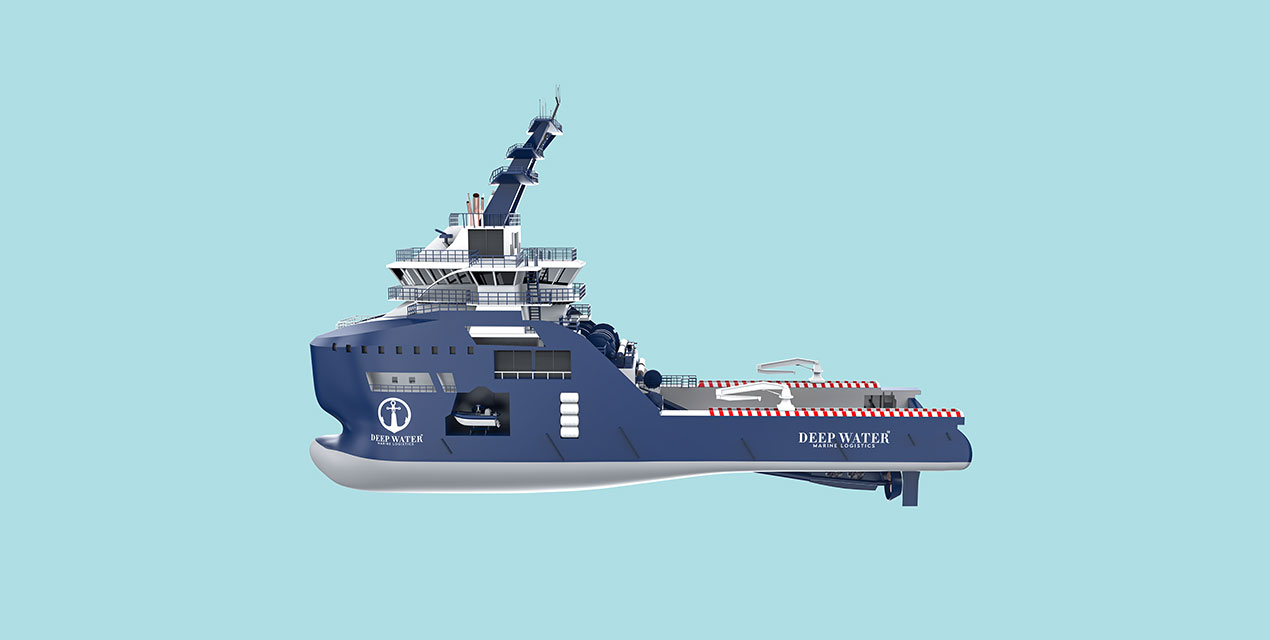

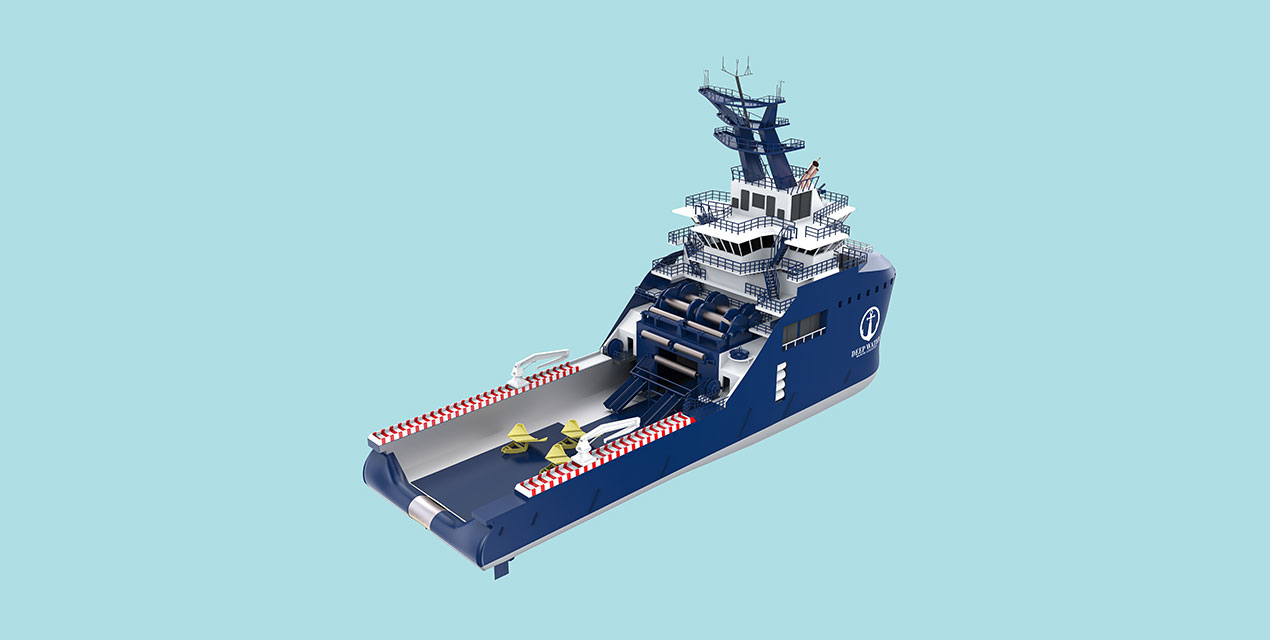

Explore the Anchor Handling Tug Supply Vessel
